INFRASTRUCTURE
Note: View our Solar Process Cycle to follow the path of solar energy from the Sun to a school.

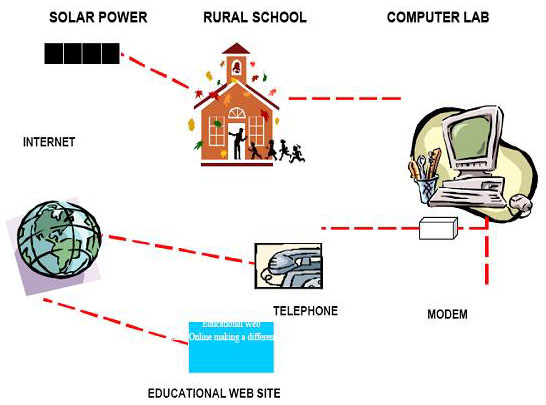

1. Solar Academy Center Infrastructure Components

Infrastructure
(click image above to view)

2. Solar Components

7200 Watt PV System
  • Array Output: 1920 watts
  • Inverter Output: 7200 watts
  • System Voltage: 48 volts
  • Wave Form: Full Sine
  • 16 x 120: 120 watt poly-crystaline photovoltaic modules.*
  • 2 x UniRac SMR216 roof / ground mount with adjustable legs.
  • Power Control Panel with 2 x GTFX3648^ inverters / chargers and MX60 charge controller.***
  • TriMetric comprehensive digital system monitor.
  • 4 x 685-21 Industrial deep cycle batteries.****

3. Internet Connectivity System Components

Satellite Internet and VSAT System
Satellite Internet and VSAT System

Solar-Powered WI-FI Router
Solar-Powered WI-FI Router

4. Academy Center Cost Estimate

  1. Solar system & Installation costs: $50,000.00
  2. Internet connectivity System costs: $30,000.00
  3. Academy Lab:
    • Building renovation costs: $20,000.00
    • 20 Desktop computers & Monitors: $15,000.00
    • 200 Low-cost laptop computers: $50,000.00
    • Microsoft Software License: $20,000.00
    • Solar Technology Instructor: $30,000.00
    • MS Window, Applications, & Internet Instructor: $30,000.00
    Sub-total: $135,000.00
  4. Administrative Expense:
    • Executive Director: $60,000.00
    • Transportation: $15,000.00
    • Others: $20,000.00
    Sub-total: $75,000.00
Estimated Total Cost for a Solar Academy Center: $300,000.00



Created in 2007: This website is offline and only available for demonstration purposes.
